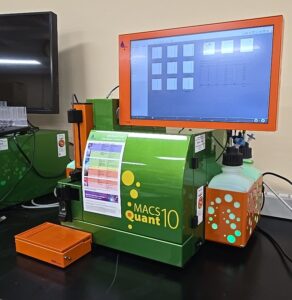

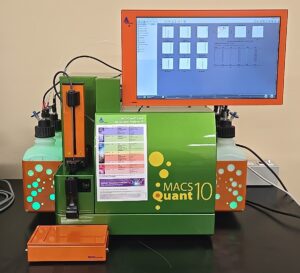

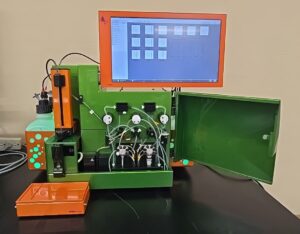

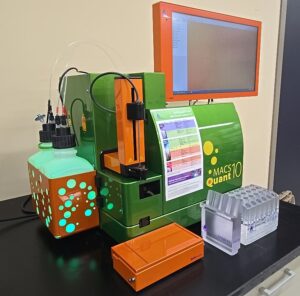

Miltenyi Biotec MacsQuant Analyzer 10 Flow Cytometer

Share Item

The MacsQuant Analyzer 10 Flow Cytometer is designed with ‘ease of use’ in mind. A compact, self-contained, benchtop unit with five-decade performance. The system includes excitation lasers at 405 nm, 488 nm and 640 nm and has Emission detectors for Forward and Side Scattering, and multiple fluorescence markers, for complex analytical assays. The computer-controlled robotics and fluidics system allows for precision processing of single and multiple samples, ideal for both small scale and high-throughput applications.

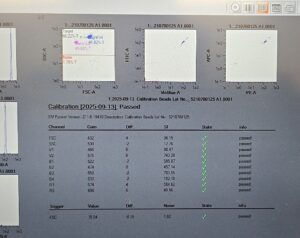

This MacQuant Analyzer 10 Flow Cytometer has been fully refurbished and has been tested by our scientific staff. This sale includes a 90-day warranty.

Features:

Computer and Software:
- ‘Built-in’ windows-based computer system with 8GB DDR4 RAM, 500 GB SSD

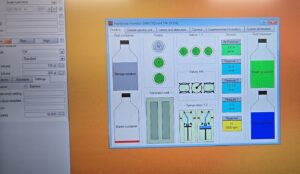

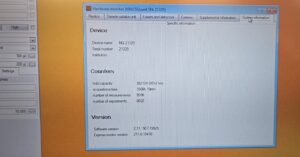

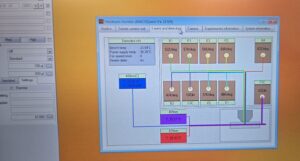

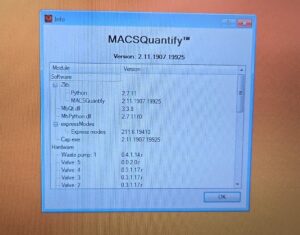

- ‘Easy to use’ MacsQuantify Software
Display/Interface:

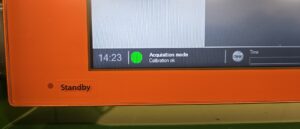

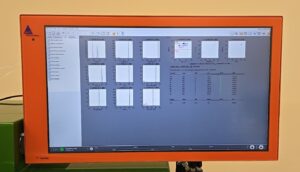

- 15.6″ LCD Touch-Screen Wide-screen Display for software control and data analysis
Optic Parameters: 3 Lasers, 8 Fluorescence Channels; 2 scatter channels – sorting with up to 10 parameters:
- Lasers: Violet 405 nm (40 mW); Blue 488 nm (30 mW), Red 640 nm (20 mW)
- Emission Detectors (nm):
  - Violet: 450/50; 525/50
  - Blue: 525/50; 585/40; 655-730; 750 LP
  - Red: 655-730; 750 LP
  - FSC and SSC (488/10): for event detection and size and granularity of cells
Flow-cell dimensions: 200 x 250 um
Performance: 5-decade logarithmic scale (display in lin, log, or hlog)
- Cell Flow Rate: 25, 50 or 100 ul/min (automated flow rate option to maintain 500, 1,000 or 2,000 events per second
- Sample uptake: 1-450 ul
- Maximum Event Rate: 15,000 events per second)
- Sample-carryover: 0.01%
Fluid level monitoring system
Power Requirements: 100-240 Vac / 50-60 Hz
Dimensions (H x W x D): 22″ x 26.4″ x 16″
Weight: 110 lbs (50 kg)
