Miltenyi MacsQuant Tyto Cell Sorter, Isolation and Retrieval System

Share Item

The Miltenyi MacsQuant Tyto Cell Sorter is a high-speed, but very gentle, cell sorting and isolation system. The system uses sterile disposable cartridges that keep samples sterile, preventing aerosols, allowing cell sorting, selection, and retrieval of cell populations for later procedures including cell culture, without environmental contamination associated with other cell sorting apparatus and techniques.

Our MacsQuant Tyto Cell Sorter has been fully refurbished and has been tested by our scientific staff. The sale includes a 90-day warranty.

Features:

Gentle Cell Sorting Technique using disposable cartridges to prevent contamination and ease collection and retrieval of selected cell populations for sub-culture
Computer and Software:
- Built-in Intel Core i7 ‘on-board’ computer with 512GB Flash Disk, 8 GB DDR4 RAM and Windows 7-64-bit
- ‘Easy to use” built-in’ MacsQuant Tyto control software
Display/Interface:

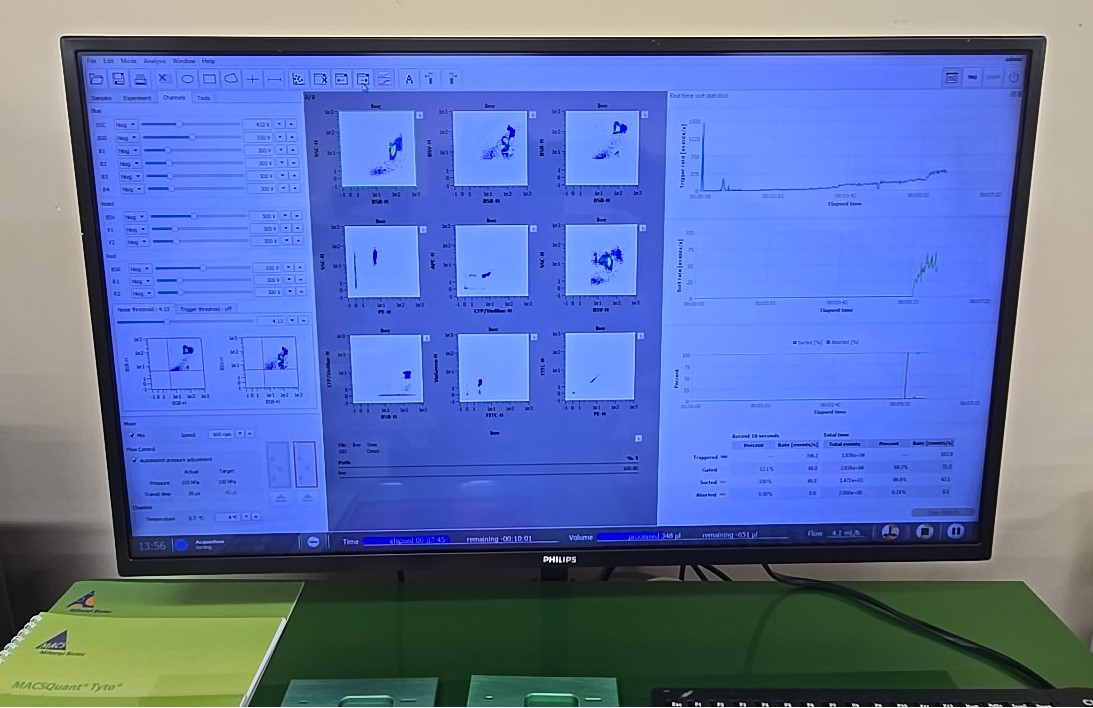

- 32″ LCD Display for software control and data analysis

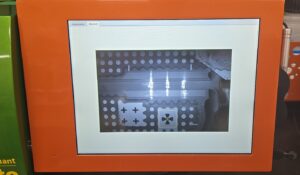

- 15.6″ Touch-screen for live camera view of the microchip
Optic Parameters: 3 Lasers, 8 Fluorescence Channels; 2 scatter channels – sorting with up to 10 parameters:
- Lasers (100 mW each): Violet 405 nm; Blue 488 nm, Red 638 nm
- Emission Detectors (nm):
  - Violet: 450/50; 525/50
  - Blue: 525/50; 585/40; 655-730; 750 LP
  - Red: 655-730; 750 LP
  - Backscatter and side scatter: for detection of size and granularity of cells
Temperature-controlled Loading Chamber: 4-25 C
Performance: 5-decade logarithmic scale (display in lin, log, or hlog)
- Purity: >99%
- Cell Flow Rate: Up to 55,000 cells/s (Tyto Cartridge); 110,000 cells/s Tyto HS Cartridge)
- Sort Rate: Up to 30,000 valve actuations/s
- Viability: >99% for lymphocytes
- Sorting Mode: two-way – sorted and non-sorted
- Operating pressure:
  - Tyto Cartridge: <230 mbar (3 psi)
  - Tyto HS Cartridge: <1100 mbar (<14 psi)
Barcode reader for custom labels, identification and traceability
Power Requirements: 100-240 Vac, 50-60 Hz
Dimensions (H x W x D; with external monitor): 30″ (760 mm) x 38″ (965 mm) x 23″ (585 mm)
Weigth (with external monitor): 148 lbs (67 kg)
