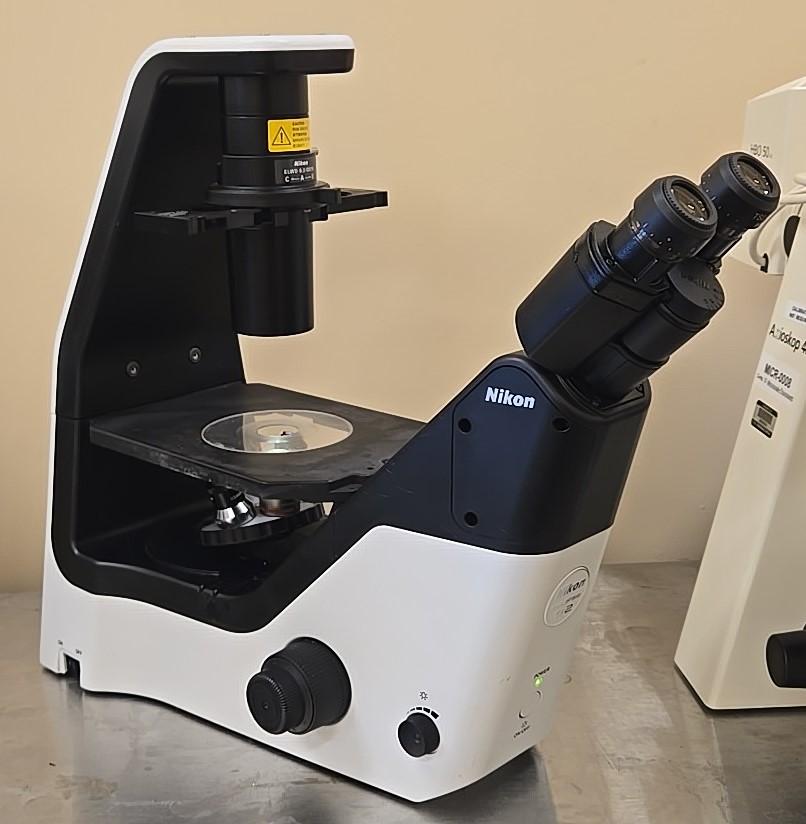

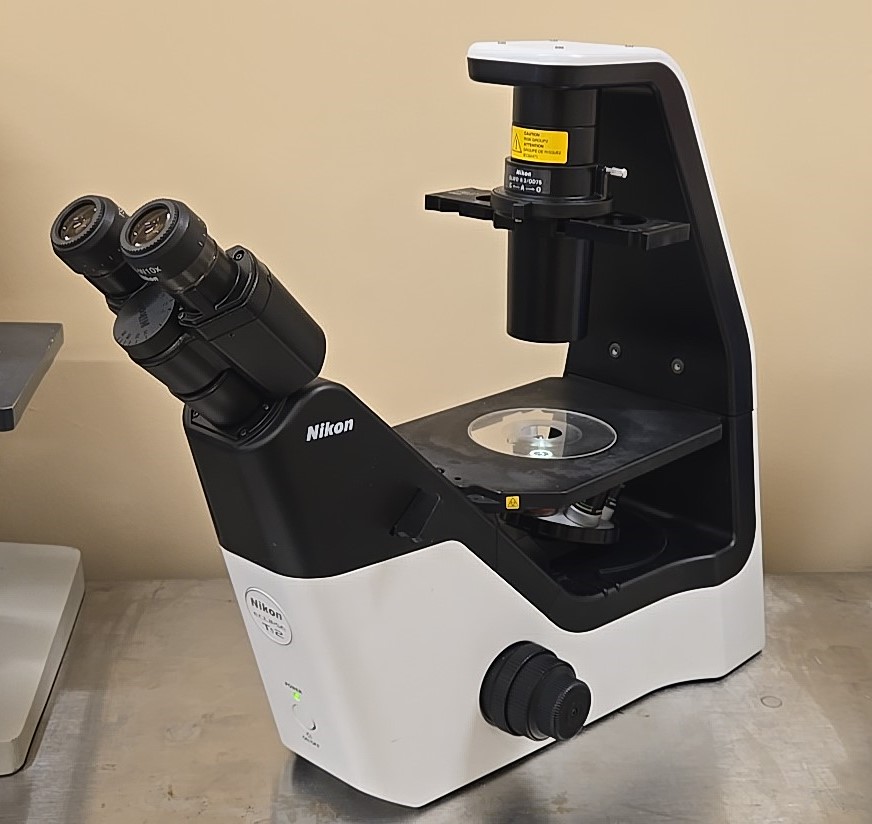

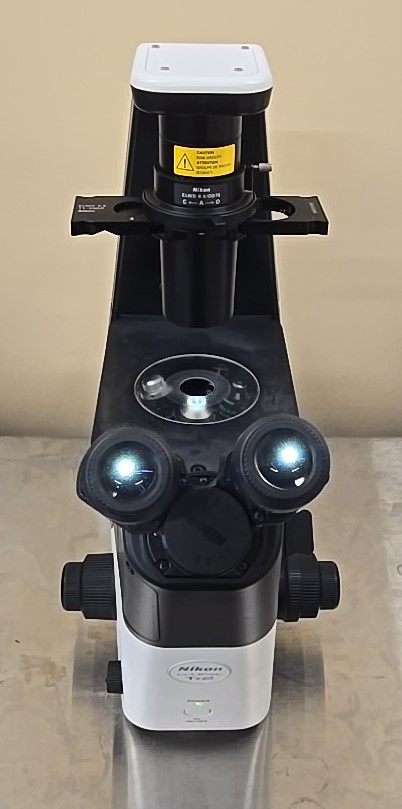

Nikon Eclipse Ts2 Inverted Phase Contrast Cell and Tissue Culture Microscope

Share Item

An Inverted Phase-contrast microscope is designed for the routine visualization of cells and tissue cultures. Applications include examination of cell growth/media conditions, cell structure, assessing contamination, cell lysis, trypsinization, visualization of mitotic events etc.

Nikon Eclipse Ts2 Inverted Phase Contrast and Cell and Tissue Culture microscope is a compact “small foot” print system which combines the CFI50 image optics of Nikon’s larger Phase and Fluorescence microscopes such as the TE-3000, TE-300s. Diascopic transillumination system using Eco-friendly 60,000h LED

This Nikon Eclipse Ts2 system has been fully refurbished and has been tested by our scientific staff. This sale includes a 90-day warranty.

Features:

Small footprint: perfect for a tissue culture/cell biology laboratory
Stage: 170-X x 247-Y mm with Stage Ring
Focusing: Manual focusing system Up: 7 mm, Down: 1.5 mm
Illumination: Diascopic system using Eco-friendly 60,000h LED coupled with a “Fly-Eye” Lens for even brightness across the field of view.
Focusing system: Coase: 37.7 mm per rotation; Fine: 0.2 mm per rotation

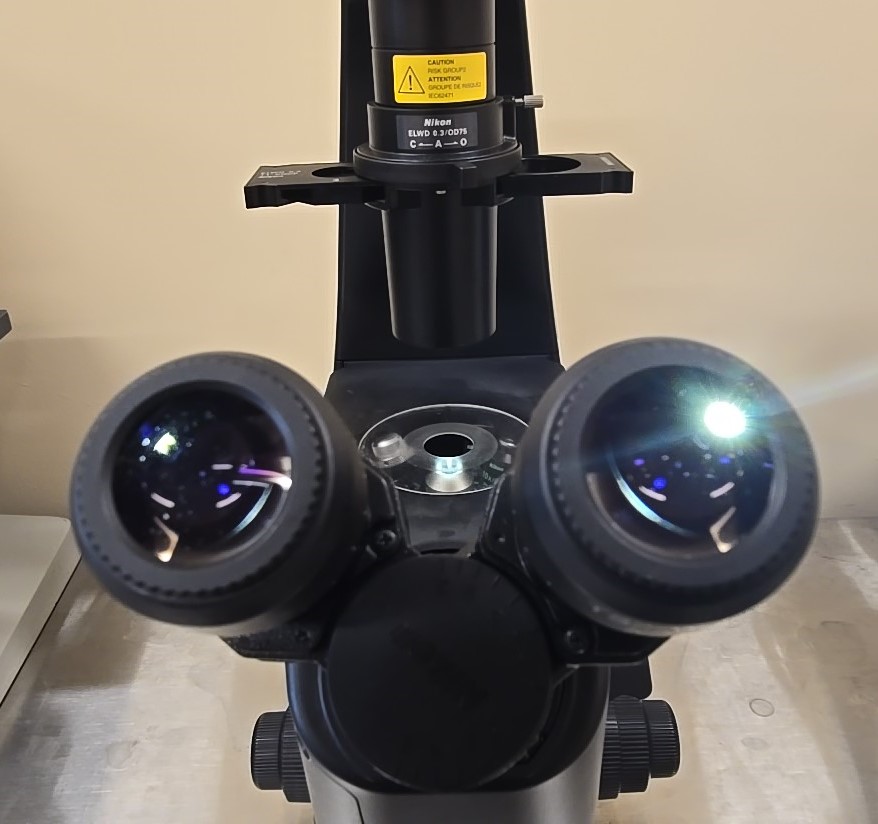

Binocular with adjustable inter-pupillary distance (50-75 mm)
Eyepieces: Ts2-W10x Widefield (Field of view: 22). Diopter adjustment (both eyes)
Condenser: ELWD (extra long working distance); NA 3.0, W. D. 75 mm
Phase Annuili Selector: 3-poa, Pre-centered PhL and Ph1 Annuli. One empty slot for Bright-Field (or other option)

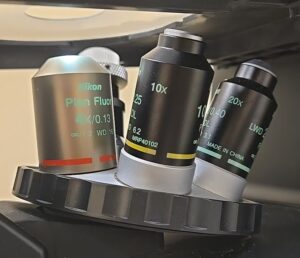

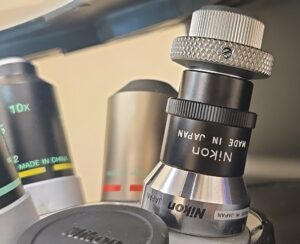

Objectives: CFI60; Nosepiece (5-position, with Object Marker Accessory):
- Nikon MRH20041: 4X/0.13, Plan Fluorescence, Phase PhL, DL (Dark Low for high contrast), OFN25 (F.O.V. 25 mm)

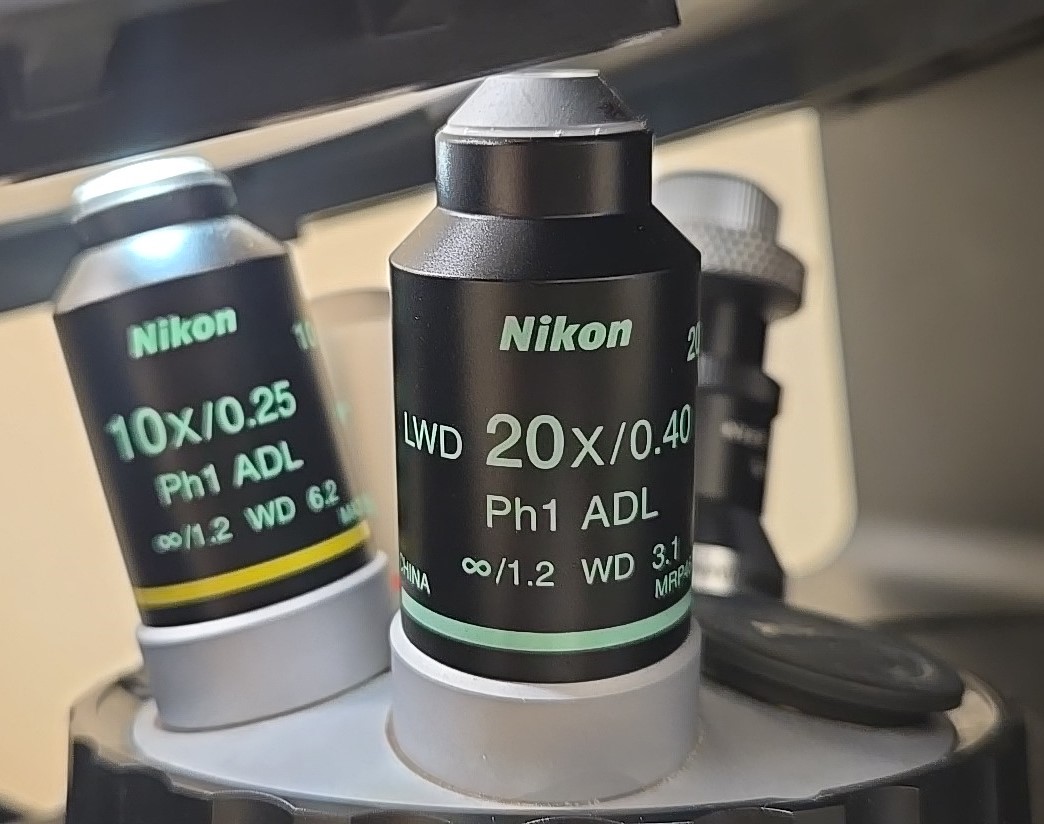

- 10x/0.25, Phase Ph1 ADL (Apodized Dark Low reducing halo effects under phase), infinity/1.2 WD 6.2
- 20x/0.40, Phase Ph1 ADL (Apodized Dark Low reducing halo effects under phase), infinity/1.2 WD 3.1
Camera Port: Optional port for C-mount and F-mount Cameras (please enquire)
Power requirements: 100-240 Vac, 50/60Hz, 0.35 A
Dimensions ( H x W x D): 18.5″ (471 mm) x 9.5″ (236 mm) x 21.5″ (548 mm)
Weight: 29 lbs (13 kg)
