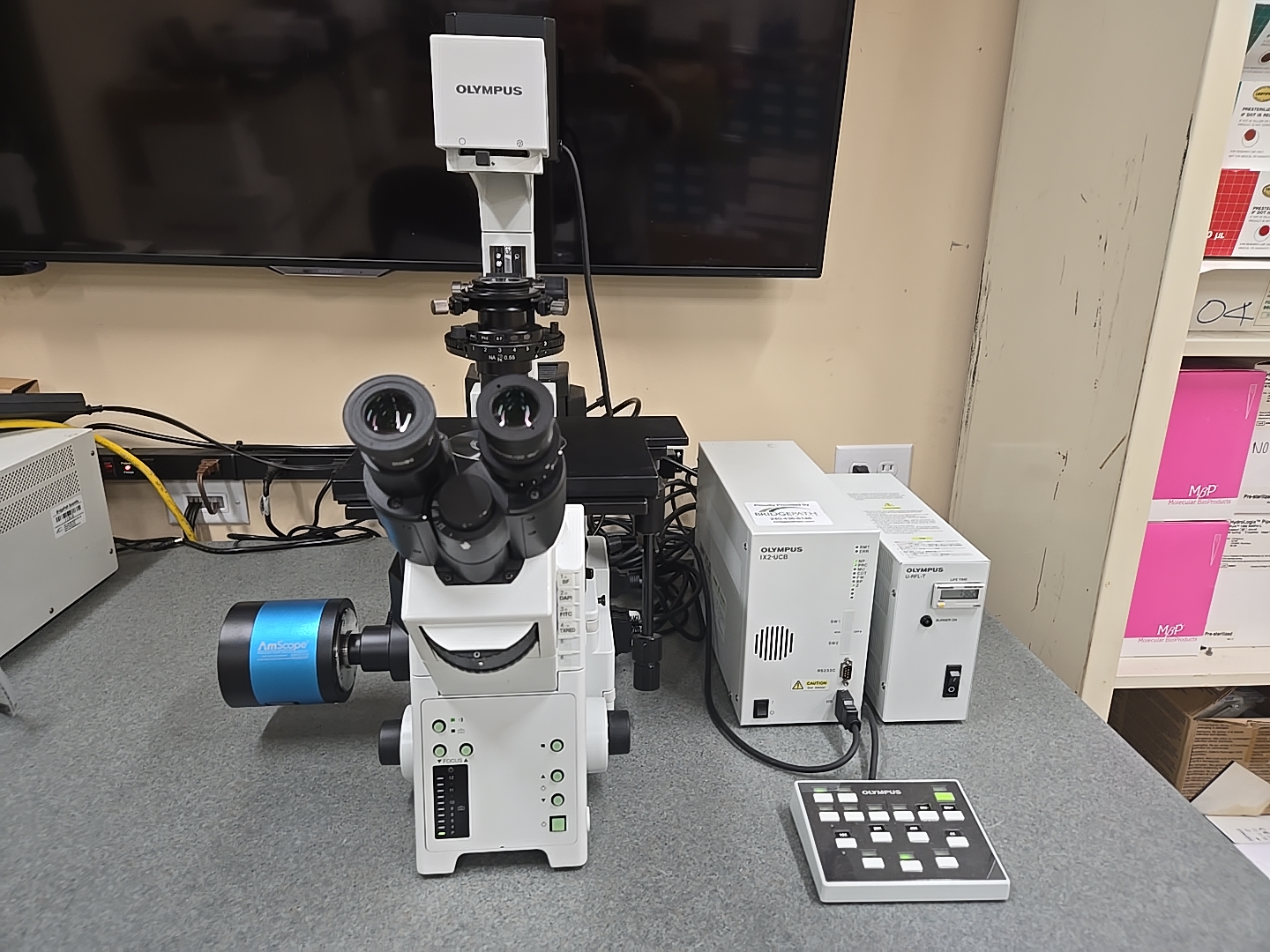

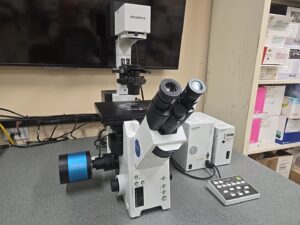

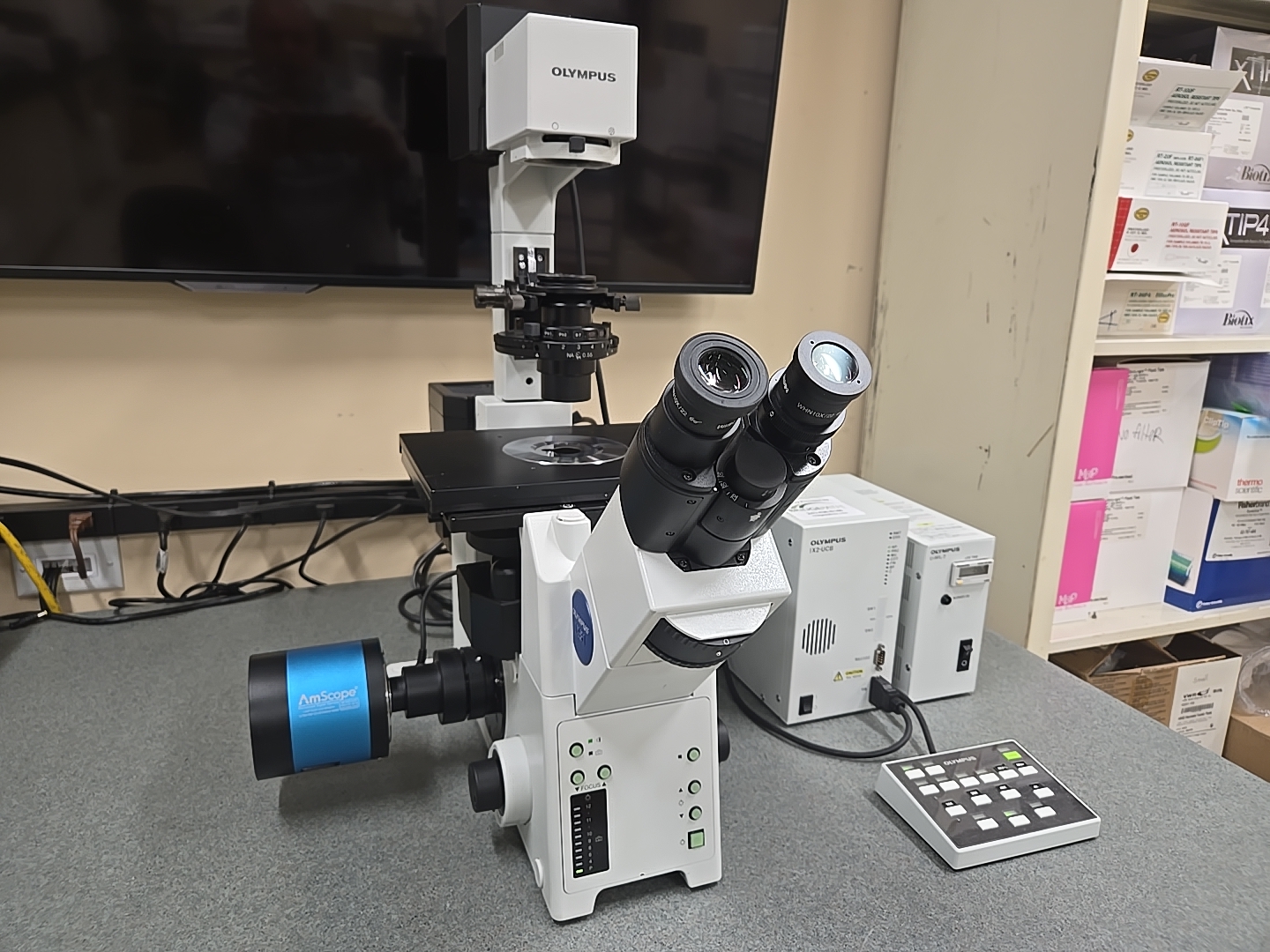

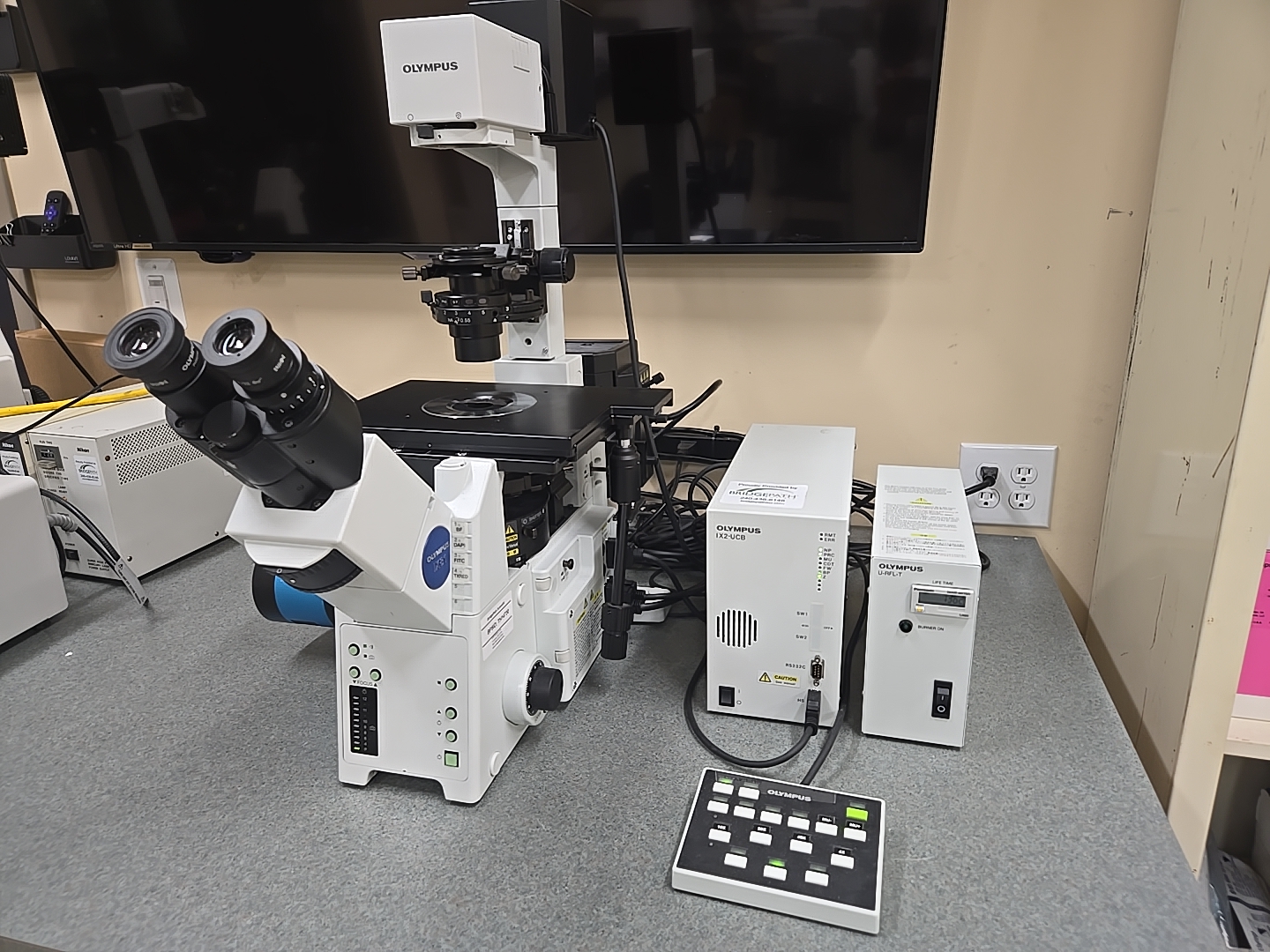

The Olympus IX81 is a “state of the art” research and medical inverted stereo phase contrast and fluorescence microscope built with flexibility, completeness in mind. The unit is completely tested, in excellent condition and comes with a 90-day warranty.
Microscope Features:
- Base System: Olympus IX81

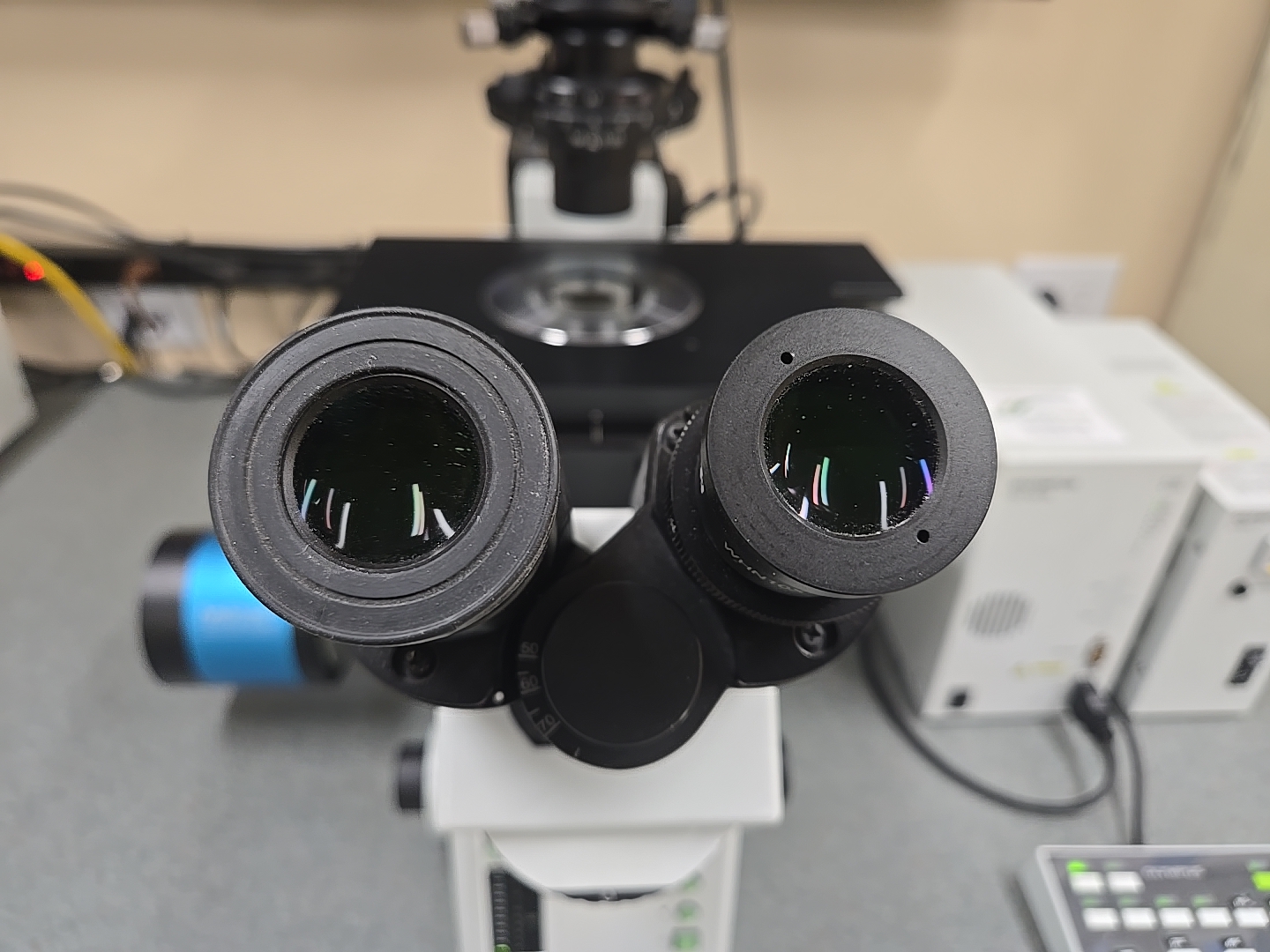

- Stereo Binocluar Viewing System with WH10X/22 Wide Field Eyepieces with Diopter Control adjustable inter-pupillary distance
- Adjustable X/Y Stage System:
- 10″ x 8″ Wide area for large samples

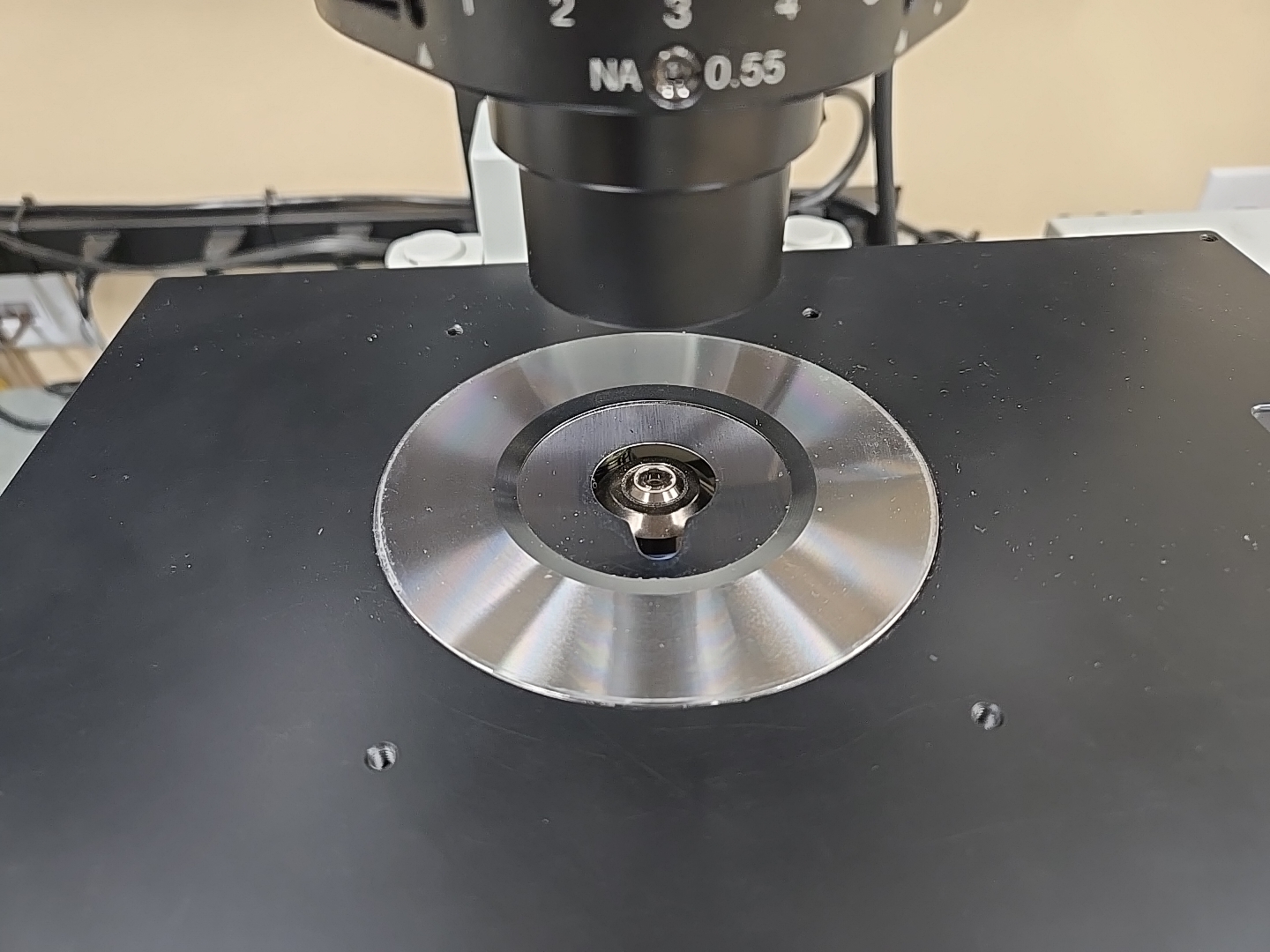

- Removal Stage Plate Disc for viewing Petri-dishes

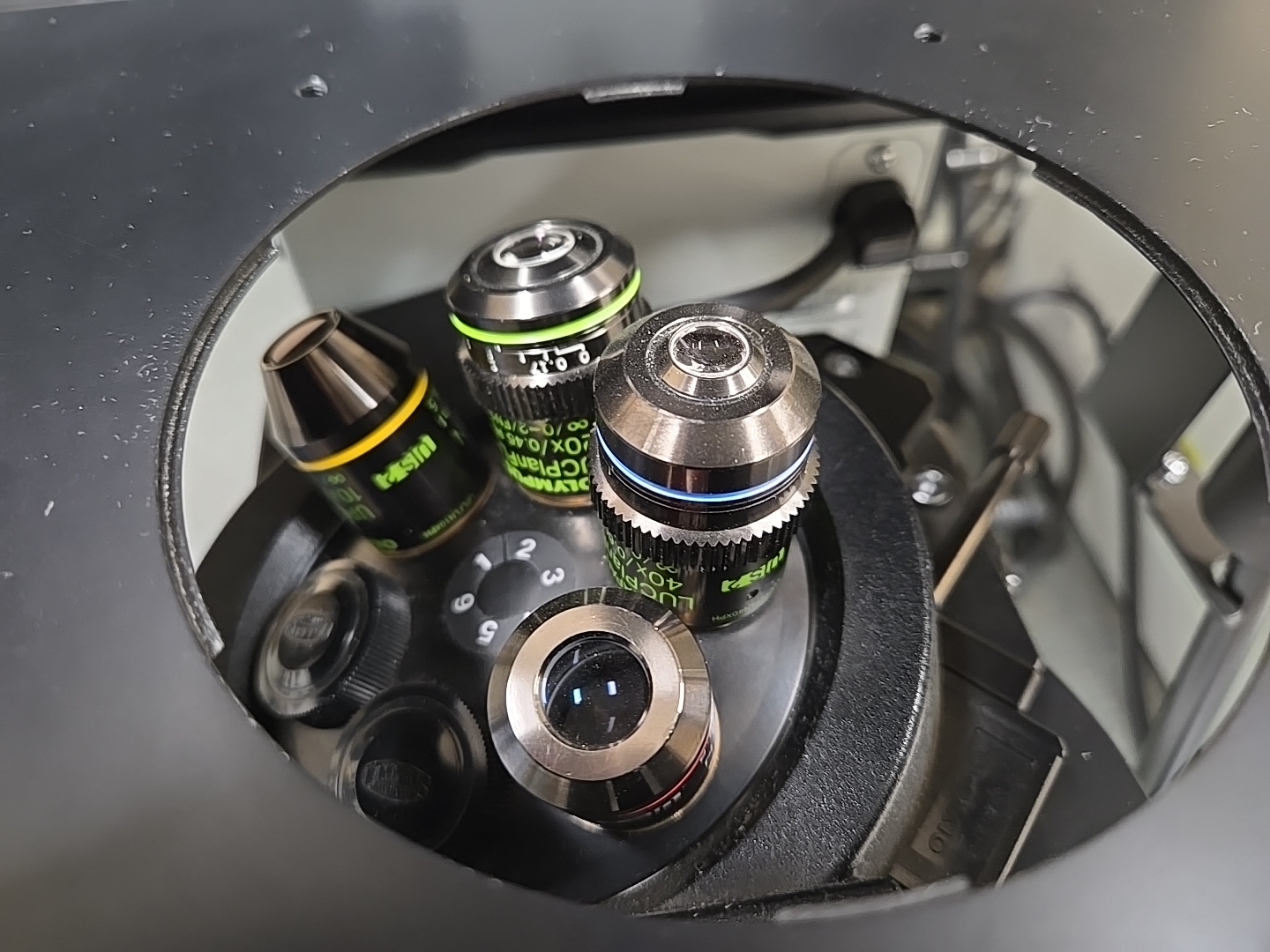

- Motorized Nose-piece: 6-position controlled by U-HSTR2 Selection module

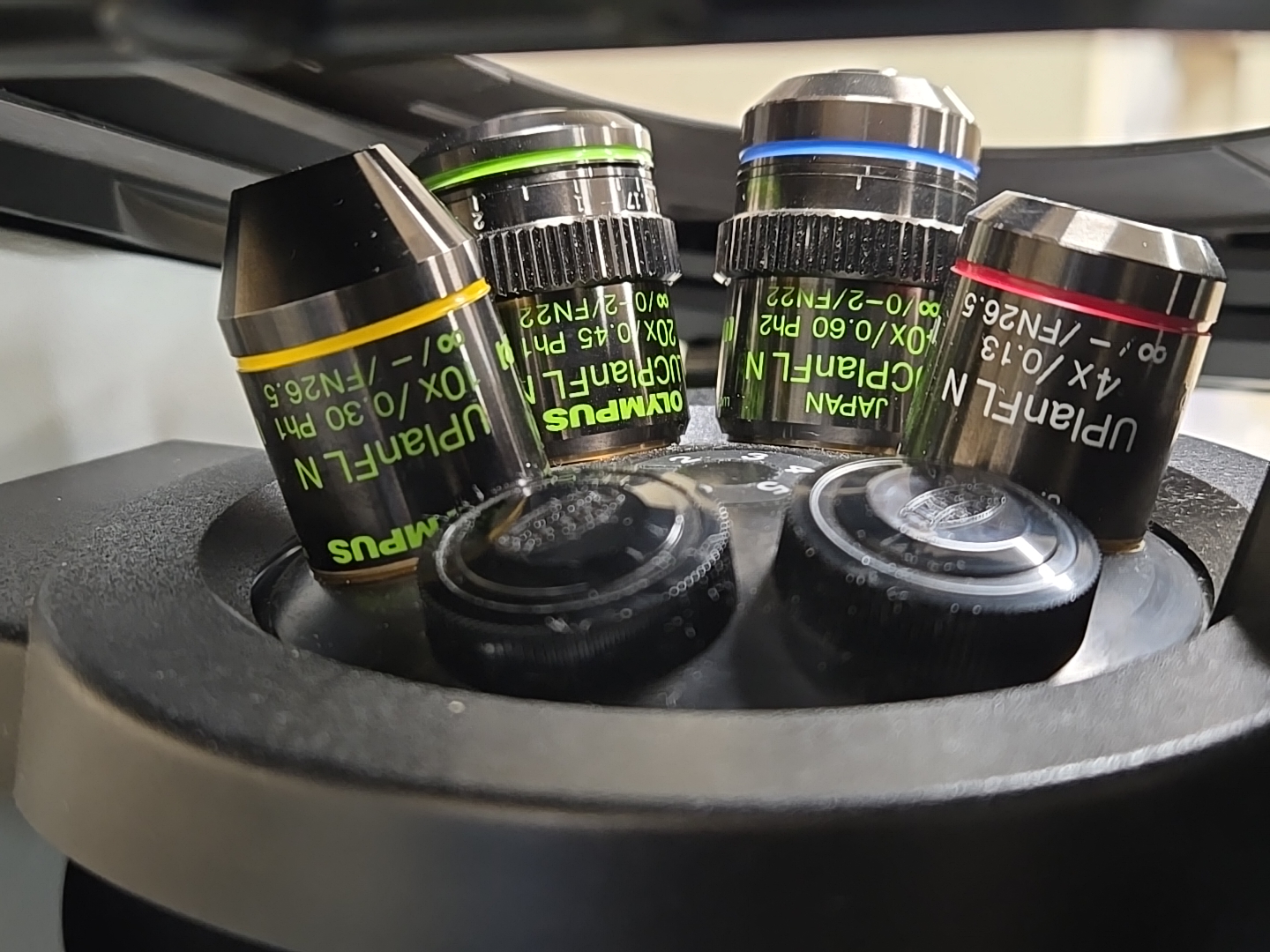

- Olympus Objectives for Bright Field, Phase contrast, and Fluorescence (all objectives function with fluorescence)
- 4x/0.13 UPLanFL N Infinity/FN26.5
- 10x/0.3 UPLanFL N PH1 Infinity/FN26.5
- 20x/0.45 LUCPlanFL N Ph1 Infinity/0 – 2/FN22 Adjustable
- 40x/0.6 LUCPlanFL N Ph1 Infinity/0 – 2/FN22 Adjustable
- Magnification Power Range from 40x – 640x (Eyepiece x Objective x 1 or 1.6 Magnification Change Lens):
- 4x Objective: 40x, 64x
- 10x Objective: 100x, 160x
- 20x Objective: 200x, 320x
- 40x Objective: 400x, 640x
- Bright Field and Phase Contrast Condenser System:
- Lamp system: Halogen
- Aperture Iris: for control of Bright-field illumination
- Phase Contrast System: Olympus PH1 and PH2 Filters for Phase objectives
- Fluorescence Optical System:
- U-ULH100HGAPO – Lamp Housing: 100W Mercury Lamp (Excitation Source)
- U-RFL-T Mercury Lamp Power Supply:
- Motorized 6-position Filter Selection System: filter cube selection using U-HISTR2 control module
- Fluorescence Filter Cube Sets included:
- DAPI-1160A: Ex. 387/11 410LP Em. 447/70 (DAPI, Hoechst, AlexaFluor 350, BFP, etc.)
- FITC-3540B: Ex. 482/35 505L P Em. 536/40 (FITC, GFP, AlexaFluor 488, etc.)
- TXRED-4040B: Ex. 562/40 593LP Em. 624/40 (Texas Red, AlexaFluor 594, mCherry, RFP, DsRED, etc.)
- Camera System:

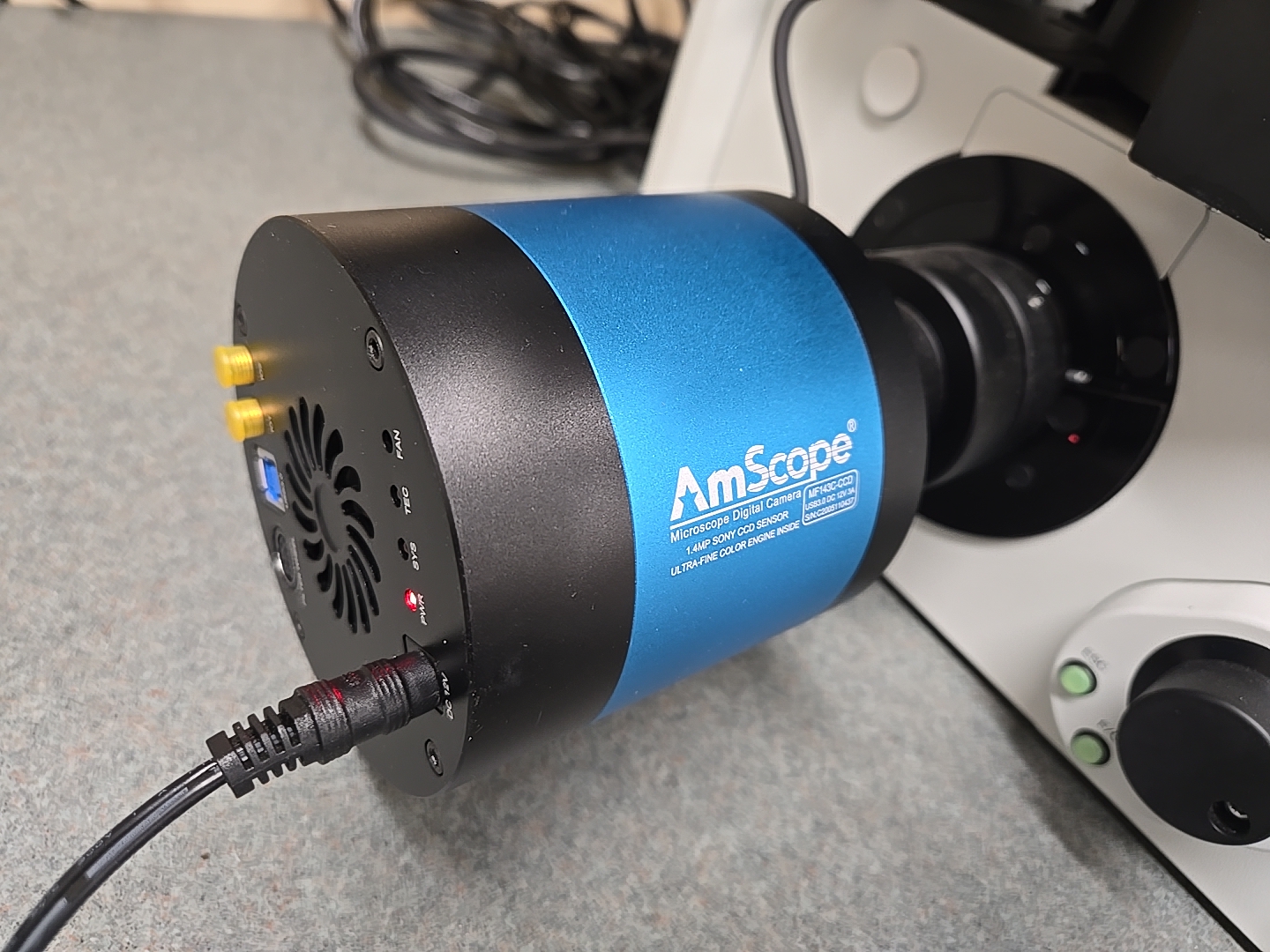

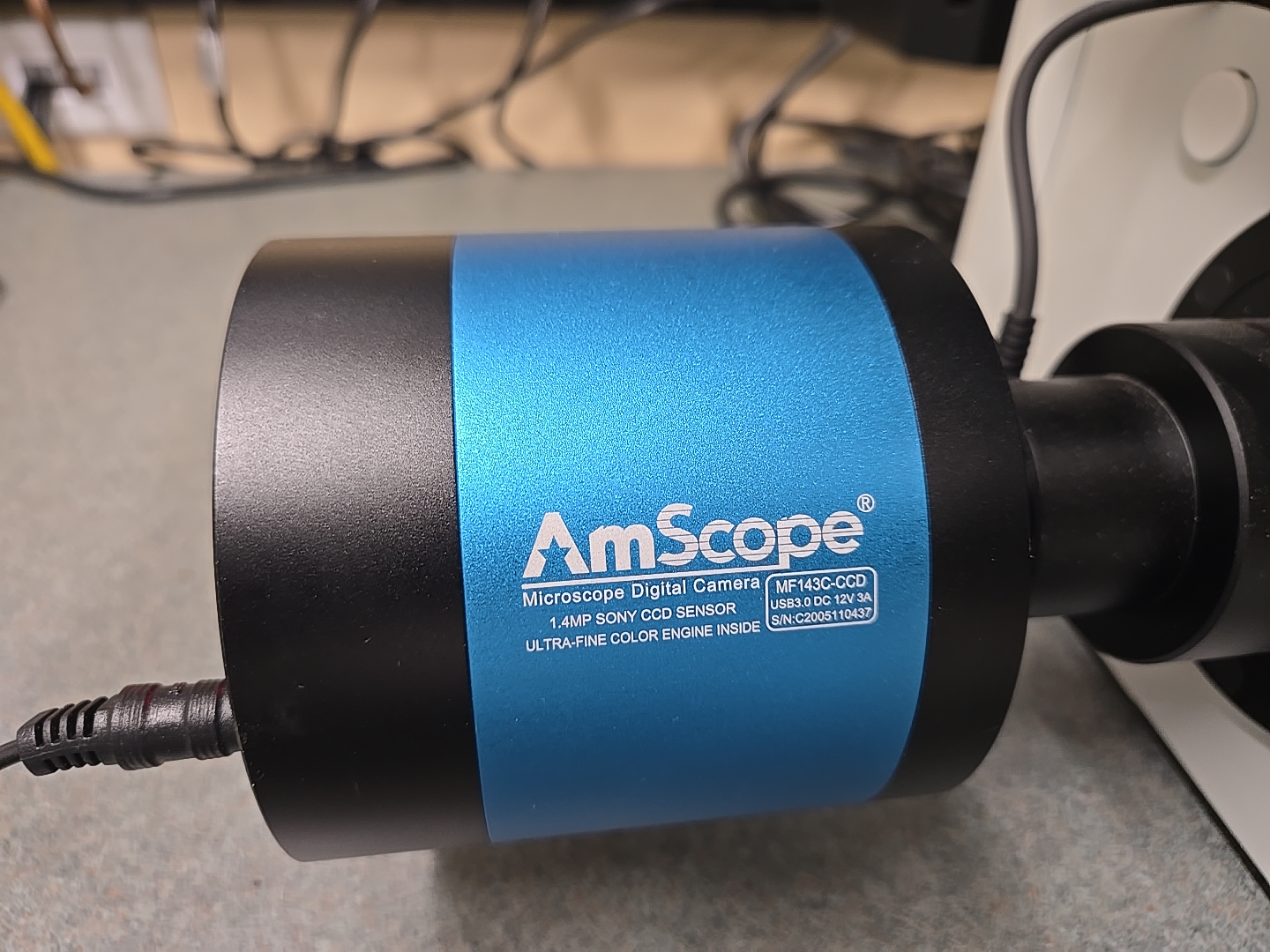

- AmScope Cooled MF143C-CCD: USB 3.0, C-mount, Ultrafine Color Camera:
- Resolution: 1.4 MegaPixel Sony CCD Sensor
- Power: 12VDC 3A
- Software: Windows PC based software compatible with Windows 10 Plus
- IX81-manual (PDF Format)
Price: Please Enquire!
Please quote inventory code TH14730
