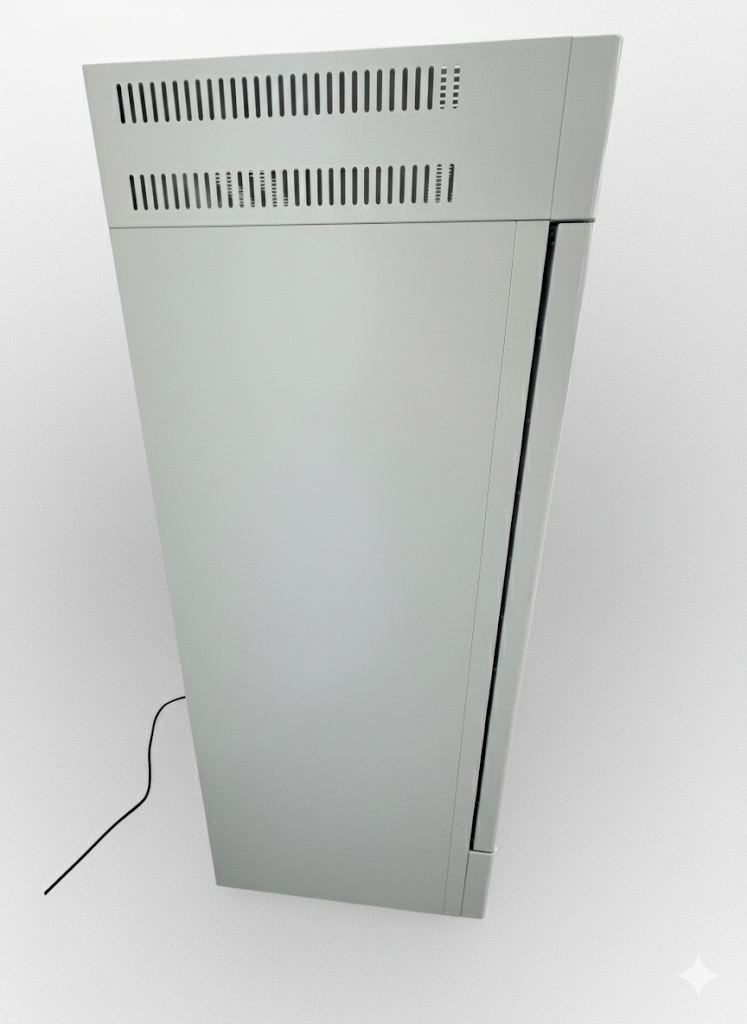

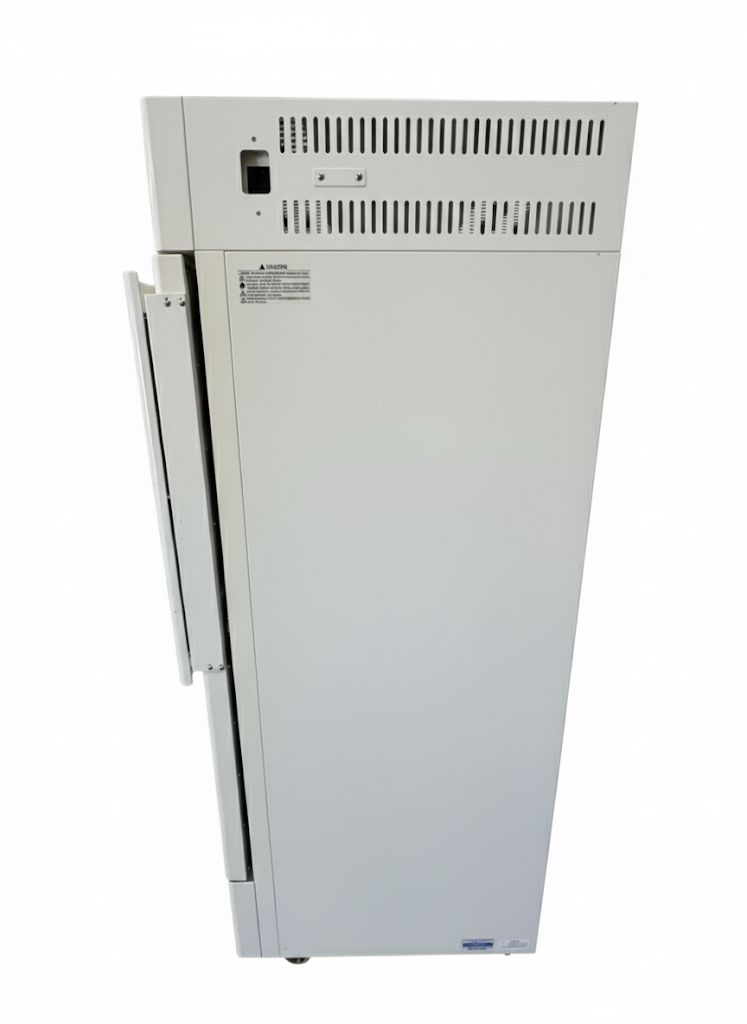

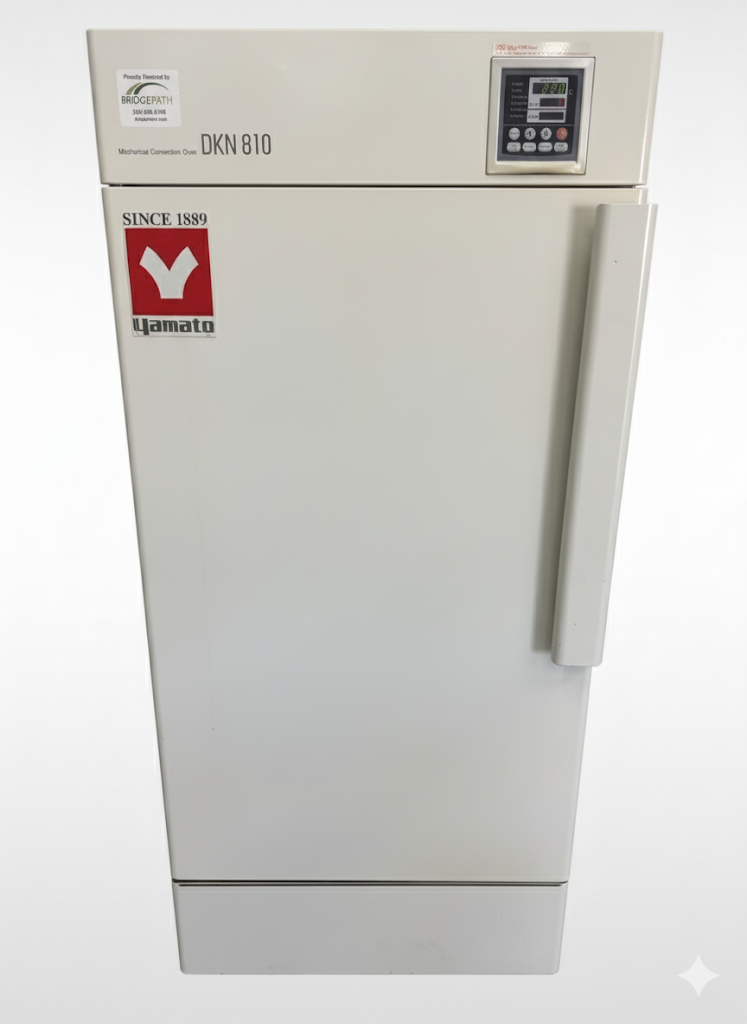

Yamato DKN810 Mechanical Convection Oven

This Yamato DKN810 Mechanical Convection Oven is in excellent condition and has been completely refurbished by our technical staff.

Features:

Performance & Capacity

• Capacity (Internal Volume):
  • $10.6-10.7$ cubic feet ($\text{cu. ft.}$)
• Temperature Range:
  • Ambient +41∘F to 500∘F
• Maximum Temperature:
  • 500∘F
• Heating Method:
  • Mechanical Convection (Forced Air Circulation)
• Max Temperature Reach Time:
  • Approximately $60$ minutes

Dimensions (W x D x H)

• Interior Chamber Dimensions:
  • $23.6$ in $\times 20.1$ in $\times 39.4$ in
• Exterior Dimensions:
  • $28.0$ in $\times 25.6$ in $\times 63.7$ in
• Weight (Shipping/Approx.):
  • $243-275$ lbs.

Electrical & Components

• Power Requirements:
  • $220\text{VAC}$, Single Phase, $14-15$ Amps

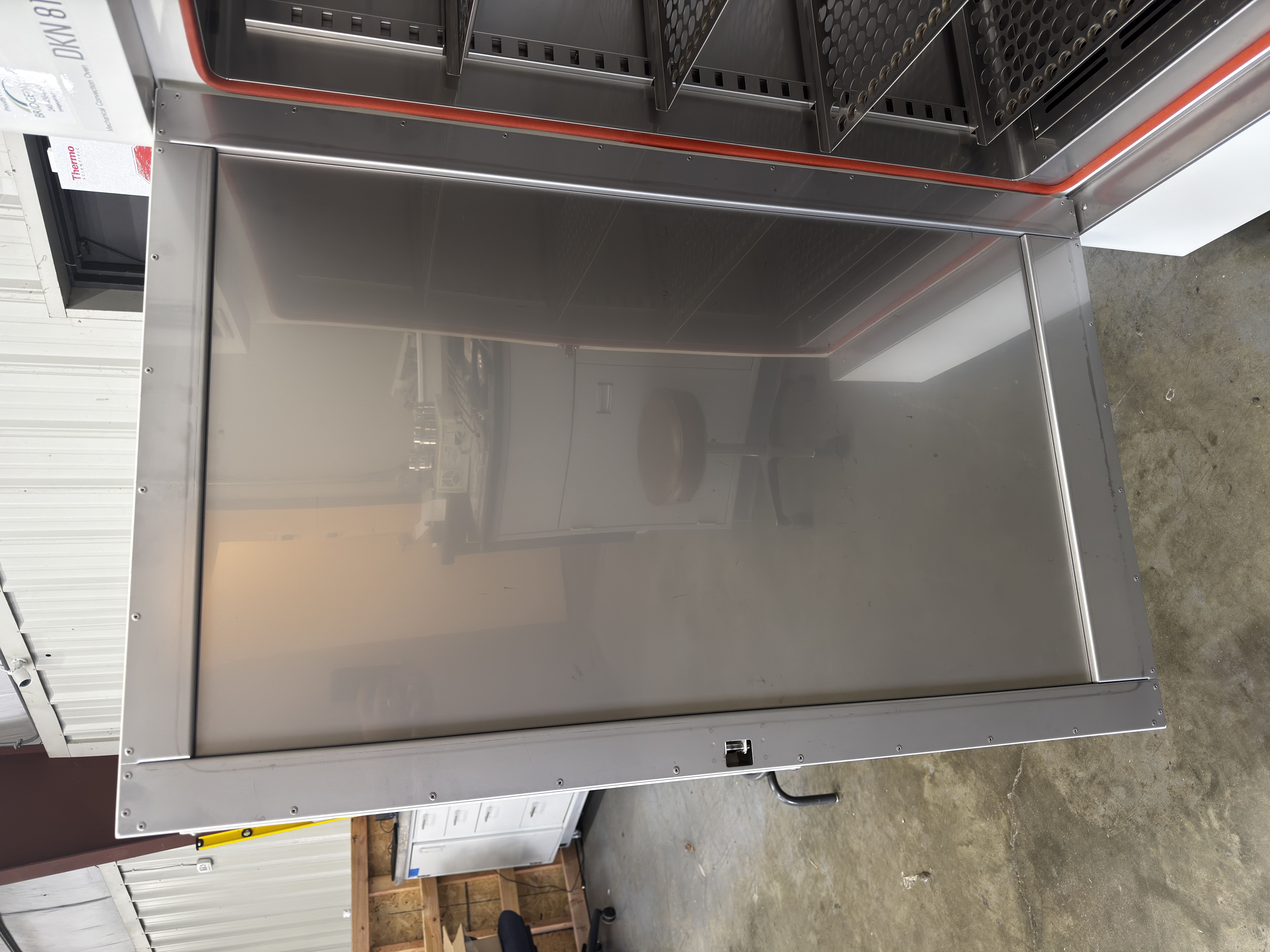

• Interior Material:
  • Type 304 Stainless Steel
• Shelf Capacity (Standard/Max Positions):
  • $4$ Shelves Standard / $29$ Shelf Positions Available

Control & Safety Features

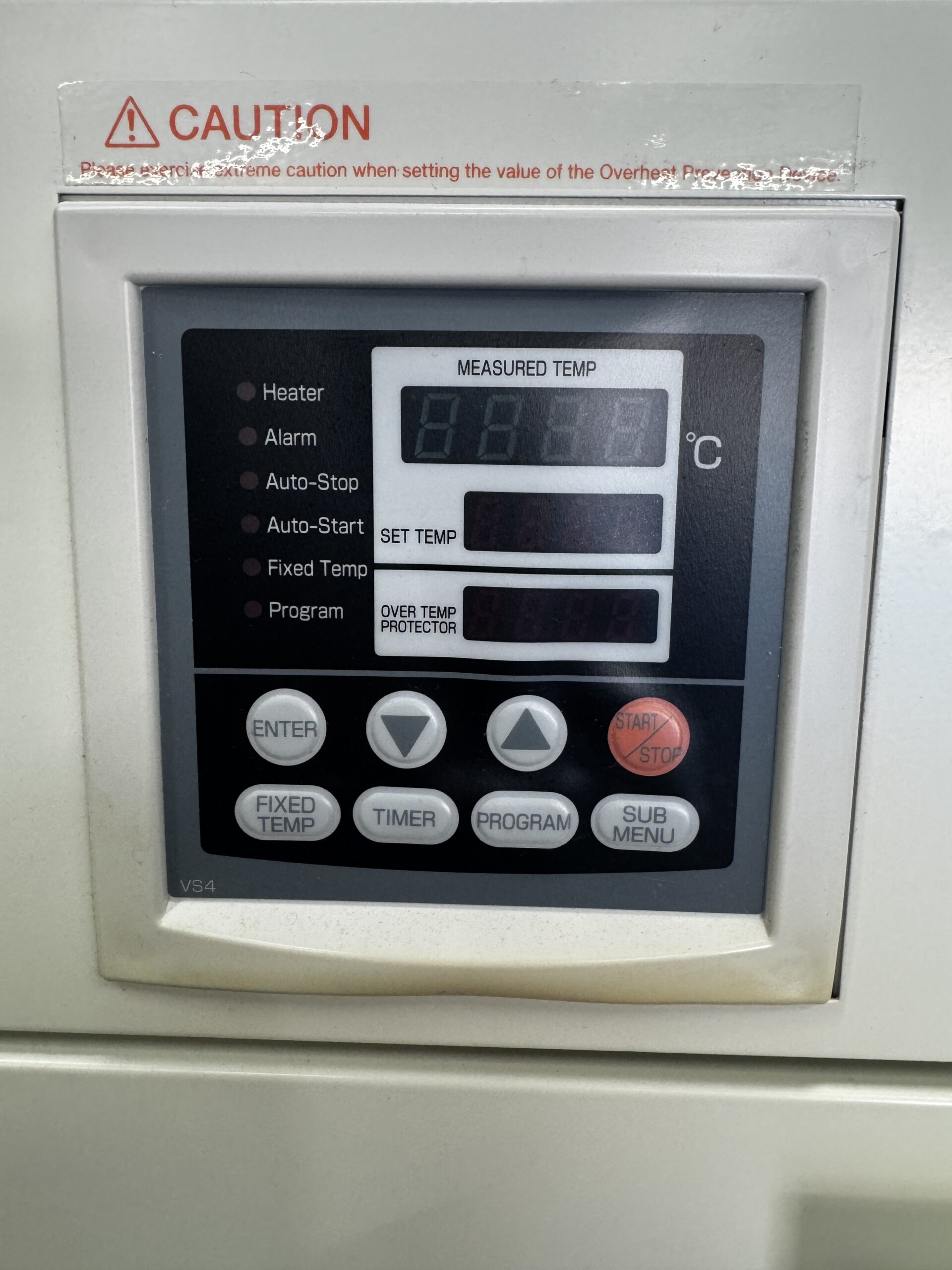

• Temperature Controller:
  • Microprocessor PID Controller
• Programming:
  • 3-Pattern Program with up to 30 steps
• Timer Range:
  • $1$ minute to $999$ hours, $50$ minutes
• Safety System:
  • Self-Diagnostic functions (Sensor error, Heater disconnection, etc.), Automatic Overheat Protection, Key Lock.
• Exhaust Ports:
  • $2\times 1.18$ inch diameter ports (Typically on the rear)

This unit comes with a 90-Day Warranty.

We will be happy to provide you a quote, which will include shipping and handling. Code 14738.
